SELF-PROPELLED TRANSLOADING CONVEYORS

If you need a dependable, long-lasting grain and fertiliser conveyor with industry-best warranty and over 30 years of innovation experience, you need a Convey-All Transloading Conveyor!

With a 16” or 22” wide rubber crescent top belt, these conveyors have a high capacity ranging from 176 – 327 Tonnes / Hour. The need for belts or pulleys is eliminated through a completely self-contained and fully hydraulic drive and the products low profile allows the collapsible hopper to easily slip under any silo.

Features
1600 TL SERIES
  • 35 HP twin petrol engine
  • “A” frame undercarriage with hydraulic cylinder lift
  • 45 litre fuel tank
  • Tandem hydraulic system
  • Winch down collapsible hopper
  • Steel hydraulic oil tank 100l
  • All operations at ground level
  • Up to 200 tonnes per hour
2200 TL SERIES
  • 22” – 2 ply rubber crescent top belt
  • 50 HP Kubota diesel engine
  • 14” diameter x 12 gauge tubes
  • Hydraulic belt drive with 4000 series motor
  • Positive pinch belt drive
  • Hydraulic driven mover with 180 deg steering
  • 190 litre hydraulic oil tank
  • Up to 300 tonnes per hour
Applications
  • Load Trucks & Trailers
  • Load Air Seeder Tanks
  • Load & unload Bins / Silos

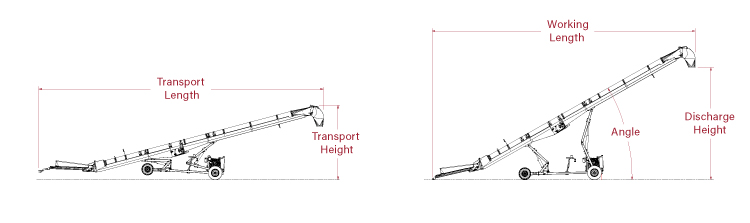

Specifications

Swipe table to reveal >>
ModelUnder-CarriageTube Dia.Belt WidthAxle WidthTransport HeightTransport LengthPetrol HPDiesel HPTop End DriveDischard Height 25°Dischard Height 30°
1635 TLA-Frame10"16"8'4"2.92m13.33m35Enquire4.26m5.28m
1650 TLA-Frame10"16"8'4"3.47m16.33m35Enquire5.68m6.95m
1658 TLA-Frame10"16"8'4"3.91m18.49m35Enquire6.65m8.10m
2245 TLScissor-Lift14"22"8'4"4.11m15.69m504.95m6.01m
22525 TLScissor-Lift14"22"8'4"4.67m17.93m507.46m6.01m
